Column structure obtain strong ability for anti-overload and impact resistance.

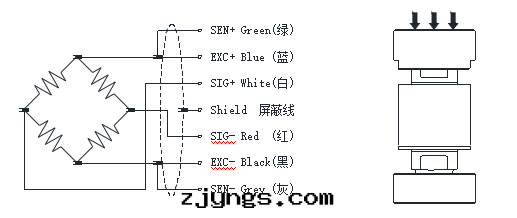

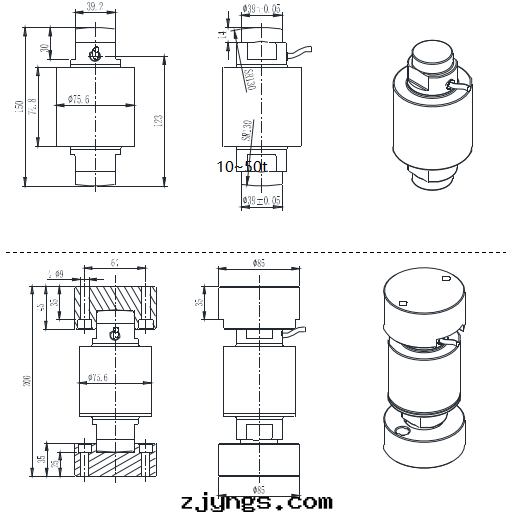

主要尺寸 Schematic diagram FA409 force transducer
技術參數Specifications
品名 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 10,20,30,50t |
輸出靈敏度 | Rated output | 2±0.5%mV/V |
零點輸出 | Zero balance | ±2%F.S. |
非線性 | Non-linearity | 0.017% F.S. |
滞後 | Hysteresis | 0.017%F.S. |
重複性 | Repeatability | 0.017%F.S. |
蠕變（30min） | Creep(300min) | 0.017%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.01%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
輸入電阻 | Input impedance | 780±20Ω |
輸出電阻 | Output impedance | 700±10Ω |
绝緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 3~12V |
最大激勵電壓 | Maximum excitation | 15V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -30~70℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | φ5.4×10m |
材料 | Material | 不鏽鋼 |
防護等級 | IP class | IP68 |
