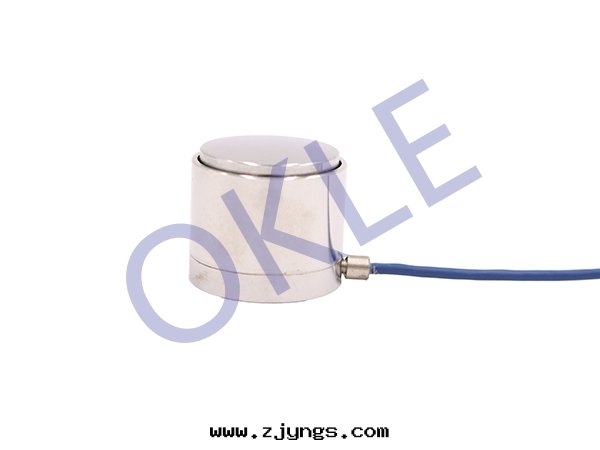

特點與用途/Features & Applications
●外形尺寸小、量程大、變形量小
●不鏽鋼材料
●防護等級：IP65
●适用于各種小空間的測力，廣泛應用于工業、研發、自动化制造等領域的測量和控制

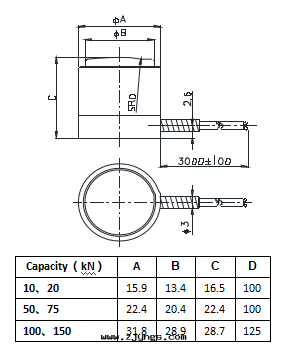

安裝尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 10,20,50,75,100,150kN |
輸出靈敏度 | Rated output | 2.0±10%mV/V |
零點輸出 | Zero balance | ±0.05 mV/V |
非線性 | Non-linearity | 0.50%F.S. |
滞後 | Hysteresis | 0.20%F.S. |
重複性 | Repeatability | 0.20%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
輸入電阻 | Input impedance | 380±20Ω |
輸出電阻 | Output impedance | 350±10Ω |
绝緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 200%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
電缆線尺寸 | Cable size | Φ2 /Φ3×3000mm |
TEDS可選 | ||
