FA07B數字變送器是为各類工業應用场合設计的高品質産品，性價比高，多種數字濾波處理技術。通讯方式RS232或RS485二選一。可通过手持終端标定和修改參數。6路獨立通道

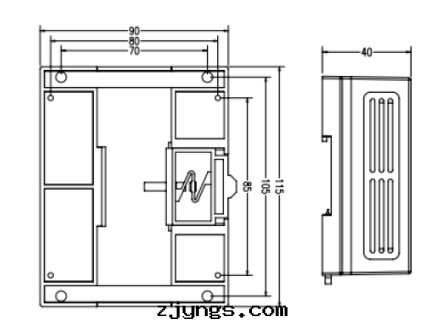

安裝尺寸/Mounting Dimension
參數 | Specifications | 技術指标/Technique |
輸入範圍 | Output specification | 0.4～6mV/v |
綜合精度 | Comprehensive accuracy | 1/30000 |
A/D分辨率 | Type | 24-bit Delta-Sigma(24位) |
通信協議 | Communication Mode | Modbus RTU/ASCII/FREE（自由協議） |
電源供给 | Power supply | DC :10V-30V |
采集頻率 | Acquisition frequency | ≥100HZ |
工作温度範圍 | Operation temp range | -20～60℃ |
輸出速率 | Conversion Rate | 10/40/640/1280s |
波特率 | Baud rate | 1200/2400/4800/9600/19200/38400/57600/115200 |
驅动能力 | Load Cells | Each channel drives 6pcs load cells 350Ω(每个通道驅动6个350Ω傳感器) |
防護等級 | IP Class | IP55 |
