特點與用途/Features & Applications
●外形尺寸小
●不鏽鋼/合金鋼材料
●适用于汽車壓裝、自动化組裝、3C産品測試、新能源産品組裝、医療檢測、機器人領域，模具組裝及其他工業測試、測量及控制系統
●动态響應頻率高

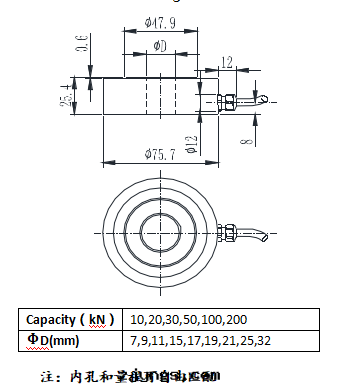

安裝尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 10,20,30,50,100,200kN |
輸出靈敏度 | Rated output | 1.5±10%mV/V |
零點輸出 | Zero balance | ±0.03 mV/V |
非線性 | Non-linearity | 0.1%F.S. |
滞後 | Hysteresis | 0.1%F.S. |
重複性 | Repeatability | 0.05%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
輸入電阻 | Input impedance | 780±20Ω |
輸出電阻 | Output impedance | 700±10Ω |
绝緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | φ4×3000mm |
