特點與用途/Features & Applications

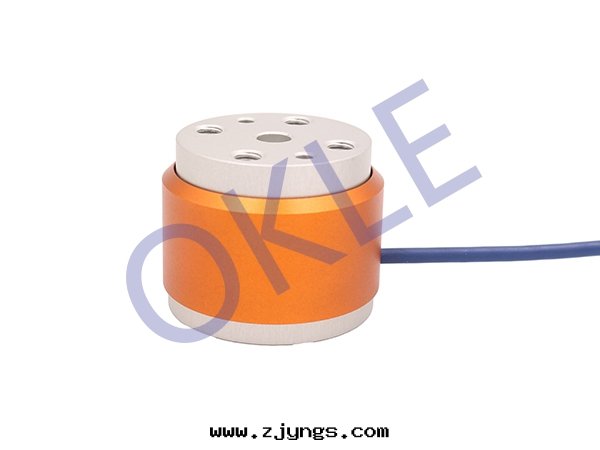

●静态扭矩傳感器
●結构緊湊便于安裝
●防護等級：IP65
●用于静态，非連續旋轉的扭矩值測量

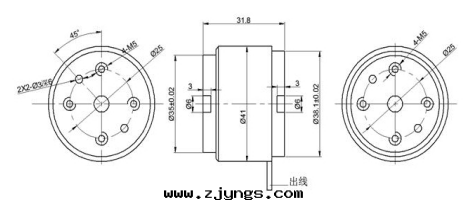

安裝尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 0～0.1, 0.2,0.5,1,2,3,5,10Nm |
輸出灵敏度 | Rated output | 1.5±10%mV/V |
零點輸出 | Zero balance | ±2% F.S. |
非線性 | Non-linearity | 0.1%F.S或0.3%F.S |
滞後 | Hysteresis | 0.05%F.S. |
重複性 | Repeatability | 0.05%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
輸入電阻 | Input impedance | 750±20Ω |
輸出電阻 | Output impedance | 700±10Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 120%F.S. |
极限超载 | Ultimate overload | 150%F.S. |
電缆線尺寸 | Cable size | φ3×3000mm |
材料 | Material | aluminum alloy(鋁合金) |
