特點與用途/Features & Applications
●张力測量傳感器, 不鏽鋼/鋁合金材質，穩定性強
●結构緊湊便于安裝,
●IP67防護等級，适用于各種环境，
●主要用于各種線张力測試

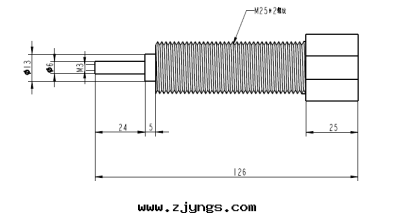

安裝尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 50N |
精度等級 | Accuracy class | 0.2% |
輸出灵敏度 | Rated output | 1.0±10%mV/V |
零點輸出 | Zero balance | ±2%F.S. |
非線性 | Non-linearity | 0.1%F.S. |
滞後 | Hysteresis | 0.2%F.S. |
重複性 | Repeatability | 0.1%F.S. |
蠕變（30min） | Creep(30min) | 0.1%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.03%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.03%F.S./10℃ |
輸入電阻 | Input impedance | 350±10Ω |
輸出電阻 | Output impedance | 350±10Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -30~70℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
電缆線尺寸 | Cable size | Φ4×3mm |
單件重量 | Weight approx. | 0.2kg |
材料 | Material | Stainless Steel（不鏽鋼） |
防護等級 | IP Class | IP67 |
