特點與用途/Features & Applications
●安裝方便，只需用螺栓固定
●防護等級：IP65
●用于被測物的动、静载實时應變監控，如起重機，壓力機和輥軋機 , 沖床設備

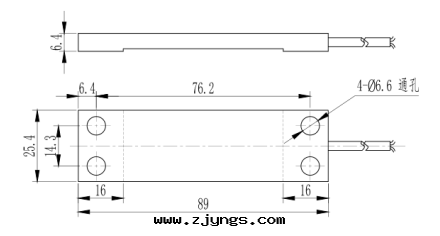

安裝尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 500μm/m |
輸出靈敏度 | Rated output | 1.5±10%mV/V |
零點輸出 | Zero balance | ±5% F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.2%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.5%F.S./10℃ |
輸入電阻 | Input impedance | 1000±10Ω |
輸出電阻 | Output impedance | 1000±10Ω |
绝緣電阻 | Insulation | ≥5000MΩ/50VDC |
激勵電壓 | Recommended excitation | 5~10V |
最大激勵電壓 | Maximum excitation | 15V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -20~60℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
電缆線尺寸 | Cable size | Φ3×2000mm |
材料 | Material | Stainless Steel（不鏽鋼） |
单件重量 | Weight approx. | 0.4kg |
防護等級 | IP Class | IP66 |
